New ** ** in-circuit esr & dcr capacitor tester model 236

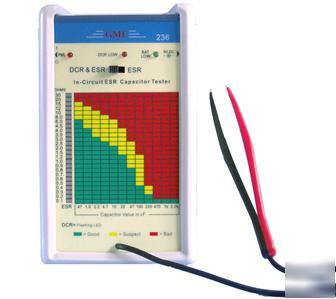

**NEW** In-Circuit ESR & DCR Capacitor Tester Model 236
In-Circuit ESR & DCR Capacitor Tester
** Test capacitor In-Circuit, eliminates the hassle of de-soldering component **
** Precision Microprocessor Controlled **
** 100 kHz output Test Frequency **
This tester is designed to measure ESR (Equivalent Series Resistance) on capacitors range from 0.47 F to 2200 F, in or out of circuit. The ability to troubleshoot in-circuit saves valuable time, making the 236 a must for anyone that tests or troubleshoots PCB (printed circuit boards). The 236 is microprocessor controlled and automatically discharge capacitor under test. It features a 100 kHz output test frequency. Using a low 15 mV peak-to-peak output test voltage, the 236 will not turn on any solid state devices during testing for accurate test result. It also checks for low DCR (DC resistance).
Check out what others has to say about their purchase
fate3d Apr-24-08 Great Item Thanks!!!!!!
happylee50_1 Apr-17-08 As advertised, good communications
In-Circuit ESR & DCR testing, eliminates the hassle of de-soldering component from PCB
Test capacitor range from 0.47uF to 2000uF
One-handed tweezers test probe
Microprocessor controlled for precise and accurate test
Automatic discharges capacitor under test
AC adaptor power source or standard 9v battery operation
Ideal for on-the-bench and in-the-field testing
Easy to use, lightweight, and portable
Dimension: 5.7" (H) x 3.8" (W) x 1.5" (D) (w/o rubber holster)
One (1) - Model 236 In-Circuit ESR& DCR Capacitor Tester
One (1) - Protective Rubber Holster
