New am cquam stereo decoder board if 450/455KHZ MC13028

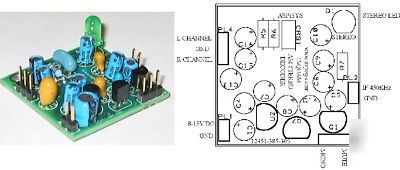

A C-QUAM Stereo decoding board provides crystal clear audio up to 15KHz and with a channel separation of more than 35dB. Optionally, this system can be de-activated via switch selection in case you need to use the device as a standard Mono AM receiver.
The device requires 7- 15VDC! That makes it capable to work inside a car!
450 or 455KHz (under request by you, covering all possible radios)
Ceramic resonator at 3.64 or 3.60MHz
Less than 0.2% @ 1 KHz/60% modulation (Typical 0.1% @ 1KHz)
modified for AM 50 usec for EU/Intern or 75 usec for US.
NOTE: AM Transmitters can be found at our store. Also you can check the: http://pdmtr.webs.com/antennasforam.htm The ASMAX-1B will work with an ISOTRON AM Antenna! This is a FULLY ASSEMBLED AND TESTED BOARD and comes with instructions. For more info you can go at http:// /dqam.htm
