Allen bradley 1794-IRT8 /a 1794IRT8 flex analog input
Rockwell Automation > PLC & HMI > I/O Products > Flex & Flex Ex > 1794-IRT8/A
Allen-Bradley 1794-IRT8 Flex I/O Analog Input Module, Non-Isolated, 8 Input Channels, Thermocouple/RTD/Mv/Strain Gauge, Series A
Allen-Bradley 1794-IRT8 Flex I/O Analog Input Module, Number of Inputs: 8 RTD, Thermocouple, Millivolt, Strain Gauge; Input Signal Range: -40 +100 mV DC for thermocouples, 0 325 mV DC for RTDs, 0 500 Ohm for resistance range; Input Resolution: 14 bits; External DC Supply Current, Nom.: 85 mA @ 24V DC; Power Dissipation, Max.: 3 W @ 31.2V DC; Common mode rejection: -80 db @ 5V peak-to-peak; Indicators: 1 green power status indicator, 8 red open input indicators; Terminal Base Unit: 1794-TB3G, 1794-TB3GS.

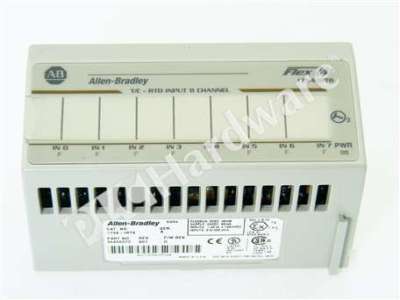

One Allen Bradley 1794-IRT8 Series A, Flex I/O Analog Input Module, Non-Isolated, 8 Input Channels, Thermocouple/RTD/Mv/Strain Gauge, in excellent working and cosmetic condition.
The unit is Series A, Rev. B01, F/W Rev. G, Manufactured in 04/04.
