Magne-tech magnetic particle inspection system

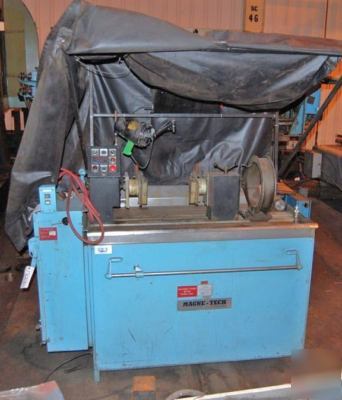

Magne-Tech Magnetic Particle Inspection System
Maximum Between Centers ................ 36"
Maximum Part Length .................... 36"
Maximum Part Length (W/Rotating Heads) . 26"
Diameter Of Magnetic Coil .............. 12"
Maximum Magnetizing Current ............ 3000 Amp AC

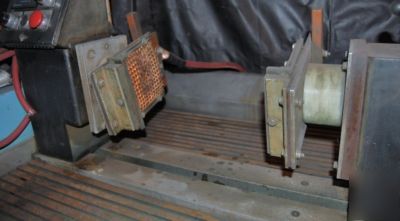

Rotating Headstock & Tailstock Heads
12" Magnetized Rail Mounted Coil (Moveable)
Foot Switch Headstock Activation
Blacklight Hood With Fan & Light Console
230/460 V, 60 Cycle, 1 Phase, 240/120 Amp Line
