4 spdl rockwell 4 spdl drill 2SPDL w/ power down feed m
4 Spdl Rockwell 4 Spdl DRILL 2SPDL w/ POWER DOWN FEED M
4 Spindles Rockwell 4 SPINDLE DRILL 2SPDL w/ POWER DOWN FEED MULTI-SPINDLE DRILL, 20",Step-Pulley H

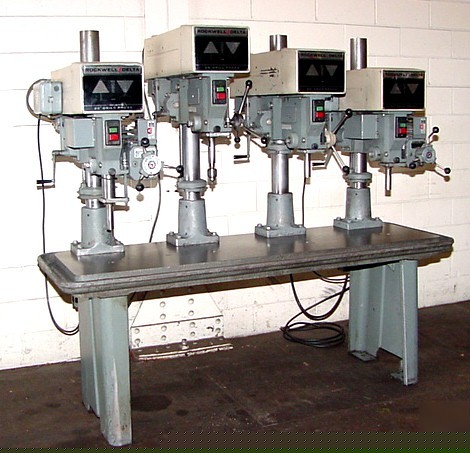

20" ROCKWELL/DELTA FOUR SPINDLE DRILL PRESS
MODEL: SERIES 2000, NEW: 1970'S
DRILLING CAPACITY STEEL ........... 1"
DRILLING CAPACITY CAST IRON ....... 1-1/8"
DRILLS TO CENTER OF CIRCLE ........ 20"
SPINDLES TRAVEL ................... 6"
QUILL DIAMETERS ................... 2-3/8"
SPINDLE TAPERS .................... #3MT
SPINDLE SPEEDS(8) ................. 180, 280, 425, 600, 800,
TABLE WORKING SURFACE ............. 23-1/2" X 77"
OVERALL SIZE OF TABLE ............. 29" X 83"
APPROXIMATE HEIGHT ................ 85"
APPROXIMATE WEIGHT ................ 2,800 LBS.
TWO ROCKWELL DELTA POWER FEED UNITS MODEL: 20-600
VARIABLE FEED RATE OF SPINDLES FROM .002 - .020 IPR
1/2 HORSEPOWER 3 PHASE MOTORS FOR SPINDLES
CONDITION: ****** EXCELLENT ******
