Bridgeport multi angle head quillmaster qra quill
****@aol.com (***)-433-3597 [phone] (***)-535-7484 [fax]
please scroll down to view all photos and details.

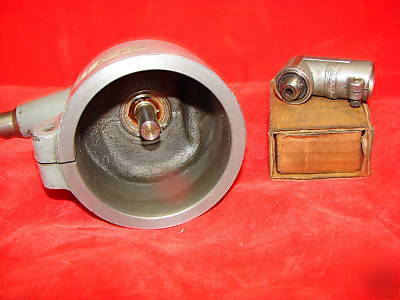

Bridgeport JA QuillMaster angle head with 3/16 collet and the small qra right angle head too..
This unit is in excellent shape. other than the paint has chips (which they all get the first time you use them) it is in perfect working order.
That's right save more than 50% off a new purchase and still get a set in great condition. Great bargain.
The following info is the current new replacement cost:
Quill Right-Angle Attachment (for use with Quillmaster)
Comes with the much needed and hard to find QRA right angle attachment in excellent shape.
This is a very versatile tool designed to fit a Bridgeport milling machine or clone. With this set up you can mill splines,keyways,groves,pockets and internal drilling.
Outstanding bargain compare to new price.
The Quillmaster permits use of small tools at any compound angle with Model J Heads. High speed and rigidity allow the use of small end mills. Any corner with a small radius can be finish milled to a degree of sharpness not possible by any other method. Rotational speed is increased by 50% by the Quillmaster to permit efficient use of small end mills.
The Spindle housing of the quillmaster may be adjusted to any postion between vertical and horizontal. In photo A for exsample the spindel housing is tilted enough to clear the inside walls of n impression. With j head or 2j set to any compound angle and with a down motion of the quill manually (or by feed ) any compound angled corner with any small radius is easly milled finished. No resetting of the workpiece is required to attain this result. consequently, the Quill master saves, and in many cases, practically eliminaets setup time.
A right angle attachment for the quillmaster, the QRA can operate in a confined space or hole only 2" in diameter( without tools it fits in a 1 3/4 hole), and can operate effectively with in 1/2" of the wall of the work piece. QRA operates with equal ease on the inside or the outside of irregularly shaped pieces or castings. QRA is a self-contained unit, featuring permanently lubricated bearings and gear housing. SEE last photo for dia of unit.
* Fits Bridgeports with J head. 2J or Bridgeport clones
* 50% overdriven which is Ideal for running small endmills at higher speeds or angles.
* Includes 1 collet .187 for qra attachment
* includes 1 QRA right angle attachment
* includes instruction sheets
