> Bantam 12 ton press brake, pneumatic 24" bench type

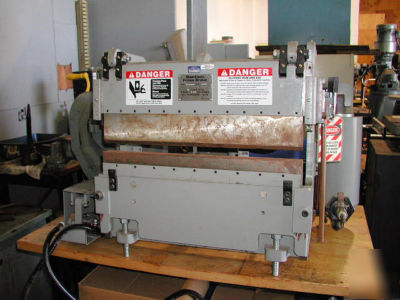

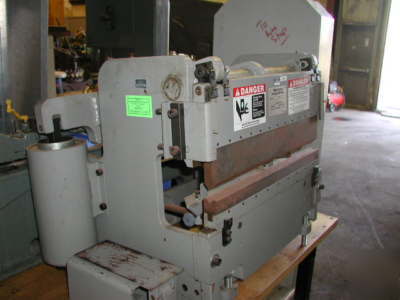

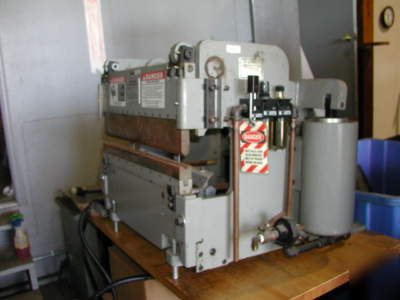

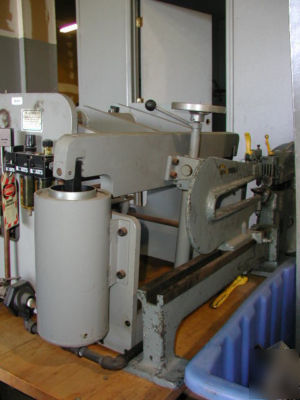

Bantam 12 ton press brake, pneumatic 24" bench type
BANTAM 24" X 12 TON PNEUMATIC PRESS BRAKE, BENCH TYPE; JUST PURCHASED FROM A LOCAL HIGH SCHOOL AND IN LIKE NEW CONDITION; THE DIES ARE A LITTLE OXIDIZED FROM SITTING IN A CLASSROOM UNUSED FOR THE LAST 8 YEARS OR SO, BUT IT APPEARS TO HAVE LITTLE OR NO USE. CALL MARC @ (***) 390-0006 TO INSPECT IN EDISON, NJ; CURRENT REPLACEMENT COST IS $ 4,975.00! WILL LOAD ONTO YOUR FLATBED AT NO ADDITIONAL CHARGE. SKIDDING OR CRATING WILL BE AT A NOMINAL CHARGE;
2' X 12 TON BANTAM PNEUMATIC PRESS BRAKE
TONNAGE ....................................... 12
BED WIDTH ..................................... 24"
BENDING CAPACITIES .........(@ 6")............. 3/8"
..........(@ 9")............. 1/4"
..........(@ 12")............ 3/16"
..........(@ 20")............ 11 GA.
STROKE ................(ADJUSTABLE)............ 1-3/4" MAX.
SHUT HEIGHT ................................... 7"
RAM HEIGHT .................................... 5-7/8"
SPEED ......................................... 30 SPM
- ADJUSTABLE STROKE DEPTH CONTROL
- FULLY PNEUMATIC, WITH FOOT PEDAL, UPPER AND LOWER DIE
FOR ADDITIONAL INFORMATION, FOLLOW THIS LINK...
http:// /bantam/bantam.htm
http:// /bantam/specs/12tonspe.htm
