New jet zx metal lathe - 14 x 40 model# gh-1440ZX -

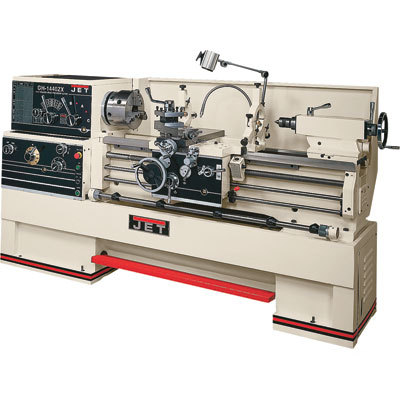

JET ZX Metal Lathe - 14 x 40 Model# GH-1440ZX -New
Uniquely designed exclusively by JET, the GH-1440ZX 3 1/8in. bore spindle is supported by two tapered and one ball bearing. Chrome molybdenum headstock gears are hardened, ground and shaved. Universal gearbox allows inch, metric, diametrical and module pitch threads, no change gears required. Carriage features one-shot lubrication and Turcite B on bed sliding surfaces. Stand Included: Yes, HP: 7.5, Volts: 230 / 460 pre-wired 230, Speed (RPM): 42 - 1,800, Spindle Speeds (qty.): 12, Width Between Centers (in.): 40, Carriage Travel (in.): 35, Thread Cutting (in.): 1 5/8 - 72, Thread Cutting (mm): .05 - 20, Dimensions L x W x H (in.): 98 x 40 x 47 T-slotted compound slide featuring a four-way tool post One-piece cast iron base absorbs vibration allowing heavier cuts High-quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground Removable gap allows up to 23 5/8in. diameter work Five-position automatic carriage stop increases productivity Attractive chrome control levers, dials and knobs Tolerance test certificate included 10in. 3-jaw scroll chuck with top reversing jaws 12in. 4-jaw independent chuck 12in. face plate Four-way tool post Follow rest Large-capacity steady rest Fully integrated coolant system Full length splash guard and coolant return Large easy to use foot brake Articulating halogen work lamp Centrally located controls with jog button Threading dial Mounting pads and levelers Spindle sleeve (MT-7 to MT-5) Dead center and live center Tool box and adjusting tools Swing over bed: 14in. Swing over cross slide: 7 5/8in. Swing through gap: 23 5/8in. Length of gap: 12 1/4in. Distance between centers: 40in. Spindle bore: 3 1/8in. Spindle mount: D1-8 Spindle taper w/ sleeve: MT-7 (MT-5) Number of longitudinal and cross feed rates: 122 Range of longitudinal feeds (IPR): .0015-.0913 Range of cross feeds (IPR): .0006-.0365 Number of inch threads: 61 Number of metric threads: 24 Max tool size: 1in. x 1in. Compound slide travel: 5 1/8in. Cross slide travel: 9in. Carriage travel: 35in. Tailstock spindle travel: 5in. Taper in tailstock spindle: MT-4 Steady rest capacity: 3/8in.-7in. Follow rest capacity: 1/2in.-3 1/2in. Width of bed: 13 3/8in. Motor 7 1/2 HP, 3 phase, 230V/460V Prewired 230V
