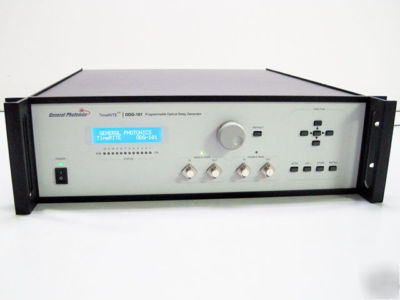

General photonics odg-101 optical delay generator
GENERAL PHOTONICS ODG-101 OPTICAL DELAY GENERATOR
Generating programmable optical delay generator from nanoseconds to milliseconds is important for various applications ranging from wireless communications to radar, optical communications, and measurement systems. General Photonics TimeRITE programmable optical delay generator is the first such product on the market. With a total delay range up to 0.25 ms (75 km) and a delay resolution up to 12 bits, this easy-to-use instrument features low insertion loss (~0.5 dB per bit), low delay dependent loss (DDL<0.2 dB), low polarization dependent loss, and fast delay changing speed (<0.5 ms). When operating in manual mode, different delay values can be selected and stepped up and down with a dialing knob. When in auto mode, the instrument scans through a set of delays with user-defined range, starting and stopping values, step size, and time interval between delay changes. The instrument also features a double-pass mode to double the total delay range by passing the light through the optical path twice. A polarization maintaining option is also available for the double-pass input and output ports. By connecting a fiber optic RF or digital transmitter at the input and a fiber optic RF or digital receiver at the output, programmable delay for RF or digital signals can be readily obtained. At General Photonics, we manage delay to make your timing right.
* 1.55 us max range single pass (3.1us Double Pass) Delay Generator
