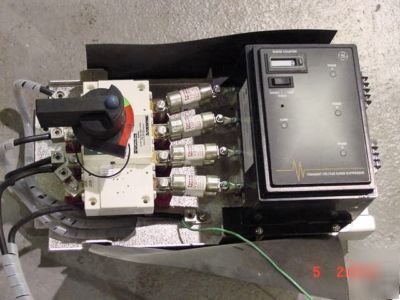

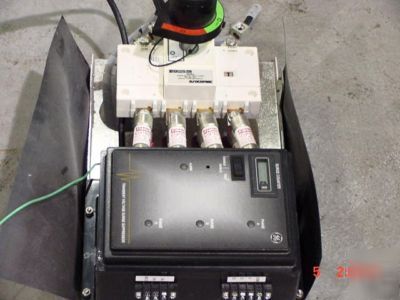

Ge voltage surge counter & 200KA 600VAC switch fuse
The Ferraz Shawmut Surge Switch is an extremely compact, high performance, manually operated, non-fused switch. It is specifically designed to withstand the high surge current of 200kA with an 8x20 s waveform seen in today s transient voltage surge protection device (SPD) applications. Ferraz Shawmut s Surge Switch utilizes a unique contact design that actually clamp contacts tighter during
Only Surge Rated Switch available today
automatically re-latch when panel door is closed-no tool necessary to reset latch
SS200 3-pole, surge switch, 200kA 8x20 s
SS200-4 4-pole, surge switch, 200kA 8x20 s
HADSS200 Direct mount black handle
HGPB External black handle, Nema 1,3R, 12 (IEC IP 54), defeatable
HGPR External red handle, Nema 1,3R,12 (IEC IP 54), defeatable
HGPB4 External black handle, Nema 1,3R,124,4X (IEC IP 65), defeatable
HGPR4 External red handle, Nema 1,3R,12,4,4X (IEC IP 65), defeatable
SG200-10 shaft, 7.9 in (200 mm)
SG320-10 shaft, 12.6 in (320 mm)
SG400-10 shaft, 15.7 in (400 mm)
TS200SS Terminal Shield, 3-pole
TS2004SS Terminal Shield, 4-pole
