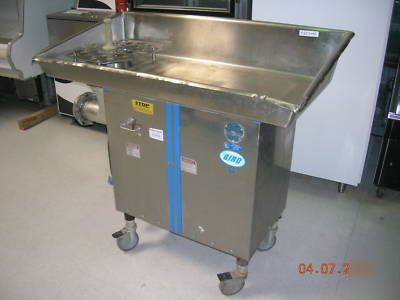

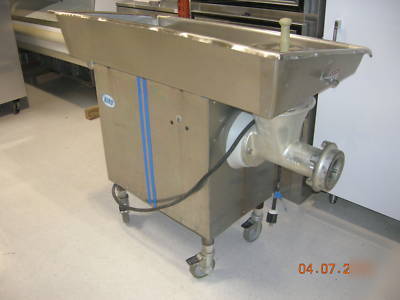

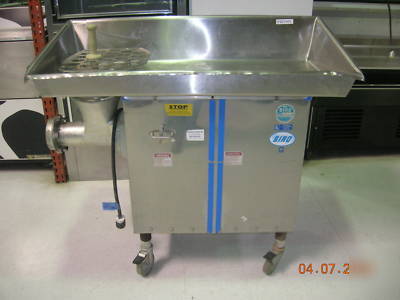

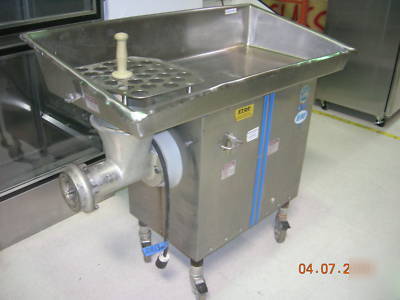

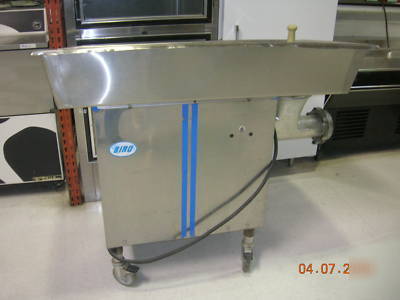

Biro meat grinder 5HP hhp model 548 heavy duty stainles

When calling about this meat grinder call 303-750-BRRR (2777) ask for Mark Bennett

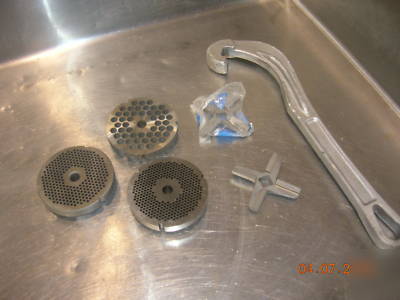

The Grinder works great and comes with extra extruders and blades. New this unit sells for $5500.00
I copied this from the internet....
The Biro HHP (Heavy Horse Power)
motor sizes that can be tailored
With bowl sizes of 48 and a motor sizes of 5hp, All of the HHP series
grinders feature single reduction
maximum efficiency, and all the
grinders use tapered roller bearings for
low maintenance and long life. The HHP
grinders have output capacities ranging from
1500 lbs. (680 kg) per hour to 7500 lbs.
(3400 kg) so you can pick the model that fits
best. All across the board, the Biro HHP
series of Manual Feed Meat Grinders works
548SS, 552SS, 7548SS, 7552SS, 1056SS,
1556SS GRINDERS (CHOPPER/MINCER).
STAINLESS STEEL FEED PAN AND POLISHED STAINLESS STEEL
CASE, CAST IRON HOT TIN DIPPED BOWL, RING AND AUGER.
FOR 5, 7.5, 10, AND 15 HP UNITS LEFT-HAND STAINLESS
STEEL, HIGH BACK FEED TRAY IS STANDARD.
RIGHT-HAND STAINLESS STEEL HIGH BACK FEED TRAYS
5 & 7.5 HP APPROXIMATELY 100 LBS. (45 KGS.)
10 & 15 HP APPROXIMATELY 115 LBS. (52 KGS.)
548 & 7548 - 55 LBS. (25 KG) PER MINUTE (1ST GRIND)
& 33 LBS. (15 KG) PER MINUTE (2ND GRIND).
552 & 7552 - 70 LBS. (32 KG) PER MINUTE (1
& 40 LBS. (18 KG) PER MINUTE (2
1056 & 1556 - 125 LBS. (57 KG) PER MINUTE (1
& 80 LBS. (36 KG) PER MINUTE (2
WATERTIGHT MAGNETIC TYPE WITH THERMAL
OVERLOAD AND UNDER VOLTAGE PROTECTION.
AVAILABLE OPTION AT EXTRA COST.
SILENT (10-15 HP) OR ROLLER LINK (5, 7.5 HP)
CHAIN DRIVE OVER WIDE FACE SPROCKETS
INSURING MAXIMUM POWER TRANSFER FROM
DEEP TAPERED ROLLER THRUST BEARINGS
CARRY ALL RADIAL AND THRUST LOADS FROM
MAGNETIC SAFETY INTERLOCK SO MACHINE WILL
NOT OPERATE WHEN FEED PAN WITH
ALUMINUM LEGS (SEE SCHEMATIC), SPURT
GUARD, STOMPER, RING WRENCH, BOWL GUARD
ON FEED PAN, OPERATING AND SAFETY MANUAL.
SIZE 32 KNIFE AND PLATE, LONGER LEGS
ALUMINUM OR STEEL WITH CROSS BRACING,
VARIOUS MOTORS (SEE CHART), SOLID STOMPER, CONNECTIONS FOR MIXER-GRINDER SYSTEMS.
For more information on the grinder go to:
http:// /NEW%202006%20PDF's/Floor%20Mincer%20Grinders/HHP%20Grinders_low%20res%2001%2007.pdf
