1994 chevalier gu-1440A universal cyl. id/od grinder

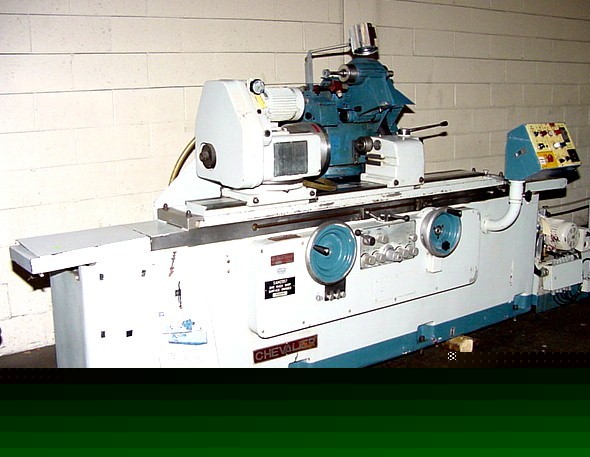

1994 CHEVALIER GU-1440A UNIVERSAL CYL. ID/OD GRINDER
14" X 40" CHEVALIER UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER
MODEL: GU-1440A S/N: L91190 MFG. 1994
MAXIMUM SWING OVER TABLE .............. 13.78
DISTANCE BETWEEN CENTERS............... 39.3
TRAVERSE SPEED......................... 2" TO 118" IPM
TABLE SWIVELS, CLOCKWISE/CCW .......... 7 DEG./3 DEG.
STANDARD GRINDING WHEEL SIZE........... 16" O.D. X 1-3"W
GRINDING WHEEL SPINDLE SPEEDS (2) ..... 1499/1917 RPM
RAPID HYDRAULIC INFEED STROKE.......... 1.57"
MAX. INFEED TRAVEL .................... 7.5"
MAX. AUTOMATIC INFEED TRAVEL .......... 0.029"
AUTO INFEED (ROUGH) INCREMENT ......... 0.0002" - .0016"
AUTO PLUNGE (ROUGH) FEED ........... 0.0004 - .060 IPM
INFINITELY VARIABLE WORKHEADSPEEDS .... 11 TO 500 RPM
WORKHEAD SWIVEL RANGE.................. 120 DEGREES
TAILSTOCK SPINDLE TRAVEL .............. 1.18"
APPROX. MACHINE WEIGHT ................ 7,280 LBS.
SWING DOWN I.D. ATTACHMENT W/20,000 RPM I.D. SPINDLE
DUAL RATE AUTOMATIC INFEED @ TABLE REVERSAL
HYDRAULIC RAPID WHEELHEAD ADVANCE/RETRACTION
9" "SUBURBAN" MAGNETIC CHUCK, MODEL RMC 9
MAGNETIC CHUCK IS MOUNTED ON AN ADAPTOR PLATE .... OTHER
ACCESSORIES CAN BE MOUNTED ON THIS SAME PLATE
EXTERNAL COOLANT TANK & PUMP WITH BOTH PAPER FILTRATION
** INSPECT UNDER POWER IN OUR HARRISON, N.J. *
** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT)!! **
