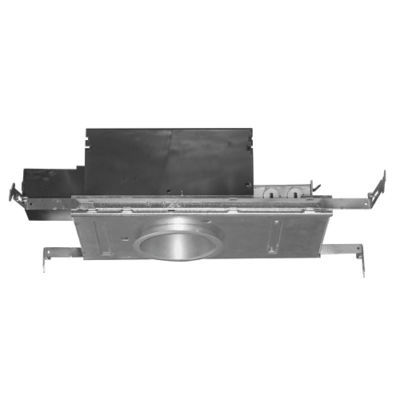

Recessed lighting 20-75W mr-16 LVH4 prescolite
The LVH4 series provides a 4" Accent Luminaire for a wide variety of commercial and high-end residential projects. Suitable for new construction where insullation, if present, is not installed above or within 3" of the fixture. It is ideal for applications that require low profile, uncluttered ceiling planes and dramatic illumination of featured items such as artwork and furnishings. Specify the LVH4 commercially in office, retail and hospitality spaces and residentially in bedrooms, living rooms, foyers and hallways. For use with 20-75W MR-16 lamps.
LVH4 series provides a 4" accent luminaire for a wide variety of commercial and high-end residential projects. The LVH4 is ideal for applications that require low profile, uncluttered ceiling planes and dramatic illumination of featured items such as artwork and furnishings. Specify the LVH4 commercially in office, retail, and hospitality spaces, and residentially in bedrooms, living rooms, foyers, and hallways.
20 gauge painted steel housing. 20 gauge galvanized steel plaster flange.
Bi-pin socket with teflon leads. Integral heat shield. Thermal protector prevents fixture from overheating when improperly installed or over-lamped. Accommodates 20-75W MR-16 lamps. Lamps furnished by others.
Magnetic encased transformer. 75VA, 11.5V secondary. Transformer serviceable from below ceiling.
Self-aligning B-9 bar hangers with integral forked and self-spreading nail tabs. Expands to 24" joist spacing. Bar hangers are suitable for 90 reorientation to housing.
Prewired 14 gauge galvanized steel junction box with snap-on cover. J-box is accessible from below ceiling.
UL approved for all ceiling types. Insulation, if present, must be kept 3" away from housing. UL listed for damp locations and through wiring. CSA certified. Thermally protected. N.Y. City approved.
