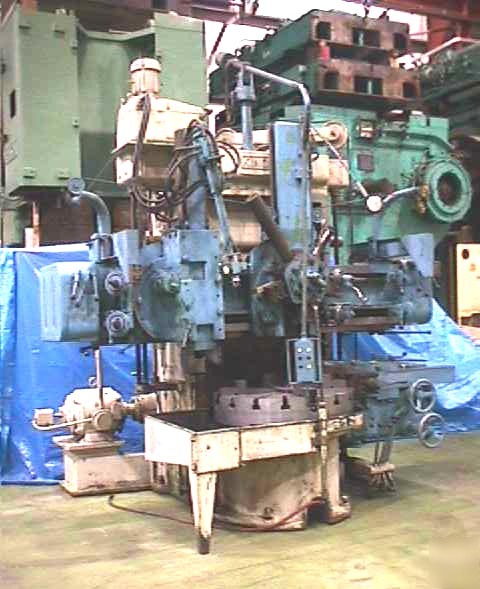

KING 42" VERTICAL TURRET LATHE
* SEE IT RUN IN OUR UNDER POWER VIDEO *
This King 42" Vertical Turret Lathe is in good condition and can be viewed
under power as needed. Please review and contact us at 800.521.6316
Maximum Swing Under Turret: 36"
(24) Feeds: .003 To .500 IPM On All Axes
Pendant Control With Push button Controls For
Elevation, Rapid Travel And Chuck Start And
5 Station Turret Head, Tilts 30 Degrees Left
And Right, 36" Vertical Travel, 33" Cross Travel
1 Side Head With 4 Side Toolpost, 24" Travel
1 Boring Swivel Head, (30 Degrees), With 24"
42" Diameter 4 Jaw Independent Scroll Type Chuck
With Step Jaws And 12 Position Jaw Mounts
Factory Tracer Attachment On Boring Head, Boring
Head Tilts 55 Degrees Left Or Right
Feed And Rapid Movement On All Work Heads
Graduated Hand Dials On All Axes
Miscellaneous Tooling, Boring Bars, Cutters, Etc.
Rear Mounted Main Electrical Panel With Main
Approximately 30 Gallon Coolant Tank With Gusher
1/2 HP Pump, 230/460 Volt, 1725 RPM, (Currently
Approximately 1/2 HP Hydraulic Pump With 15 Gallon
Tank, 220/460 Volt, (Currently Wired For 460 Volts)
30 HP, 220/440 Volt, 1450 RPM, 3 Phase Main Motor
(Currently Wired For 440 Volts)
Approximate Dimensions: 8' 10" FB x 11' 3" LR x
Approximate Weight: 38,000 Lbs.
Specifications subject to verification.
